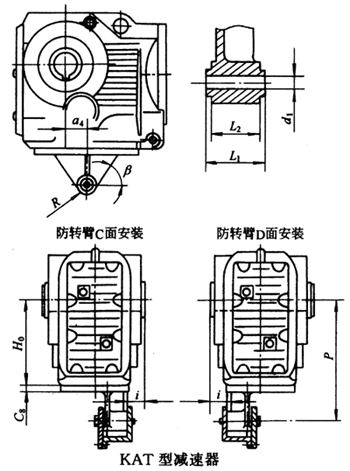

KAT 型減速（sù）器主要尺寸（cùn） /mm
|
型號 |
α4 |
β |
C8 |
i |
P |
R |
H0 |
d1 |
L1-0.3 |
L2 |
|
KAT37 |
23.5 |
60’ |
10 |
20 |
140 |
22.5 |
100 |
10.4±0.1 |
36 |
31 |
|
KAT47 |
30 |
55’ |
12 |
20 |
160 |
22.5 |
112 |
10.4±0.1 |
36 |
31 |
|
KAT67 |
45 |
55’ |
13 |
25 |
200 |
29 |
140 |
16.4±0.08 |
60 |
54 |
|
KAT77 |
52.5 |
60’ |
14 |
25 |
250 |
29 |
180 |
16.4±0.08 |
60 |
54 |
|
KAT87 |
60 |
60’ |
16 |
30 |
300 |
41 |
212 |
25±0.08 |
80 |
72 |
|
KAT97 |
70 |
50’ |
17 |
40 |
350 |
41 |
265 |
25±0.08 |
100 |
92 |
|
KAT107 |
74 |
55’ |
20 |
45 |
450 |
41 |
315 |
25±0.08 |
100 |
92 |
|
KAT127 |
60 |
65’ |
45 |
7 |
550 |
70 |
375 |
40±0.08 |
126 |
110 |
|
KAT157 |
50 |
70’ |
45 |
2 |
700 |
70 |
450 |
40±0.08 |
126 |
110 |
